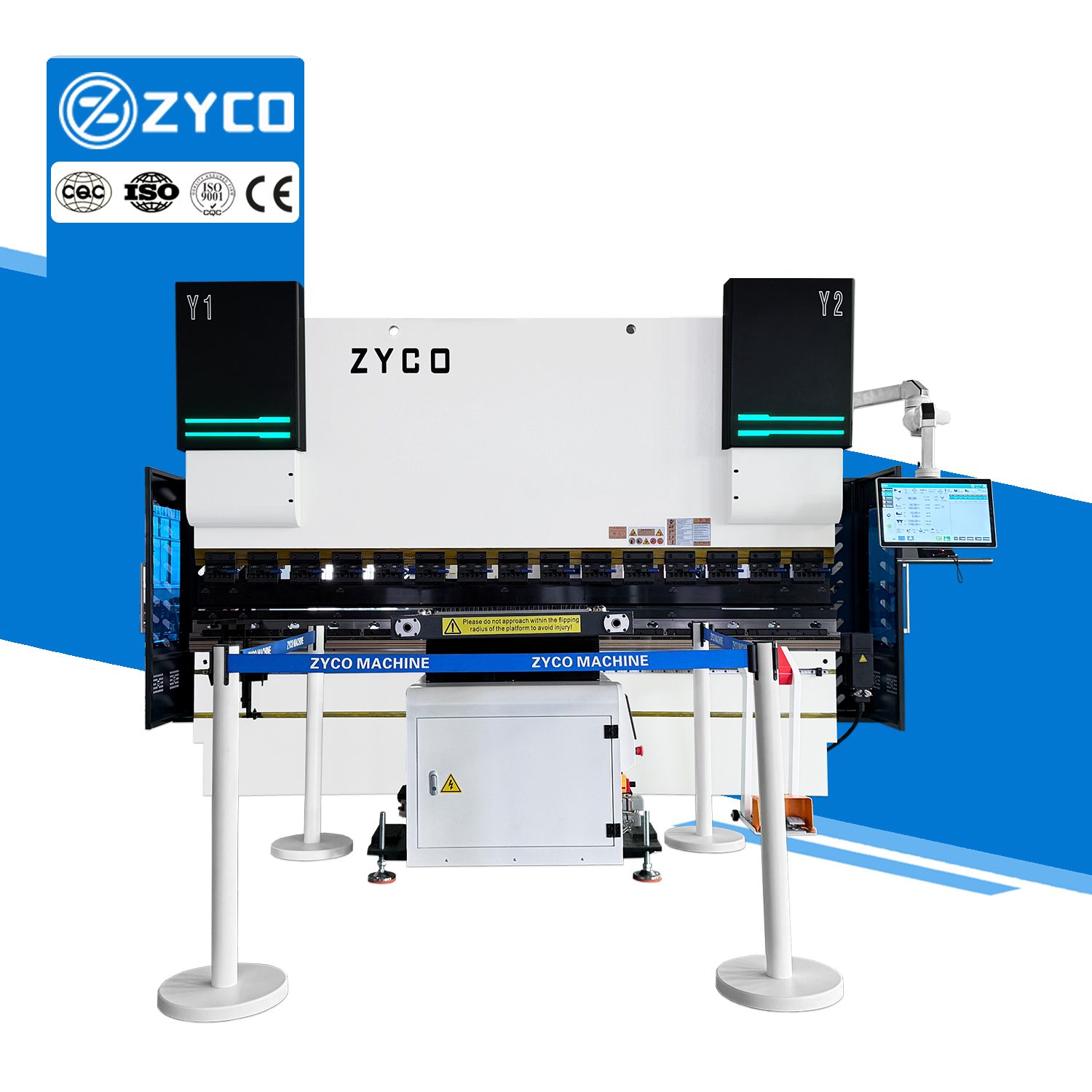

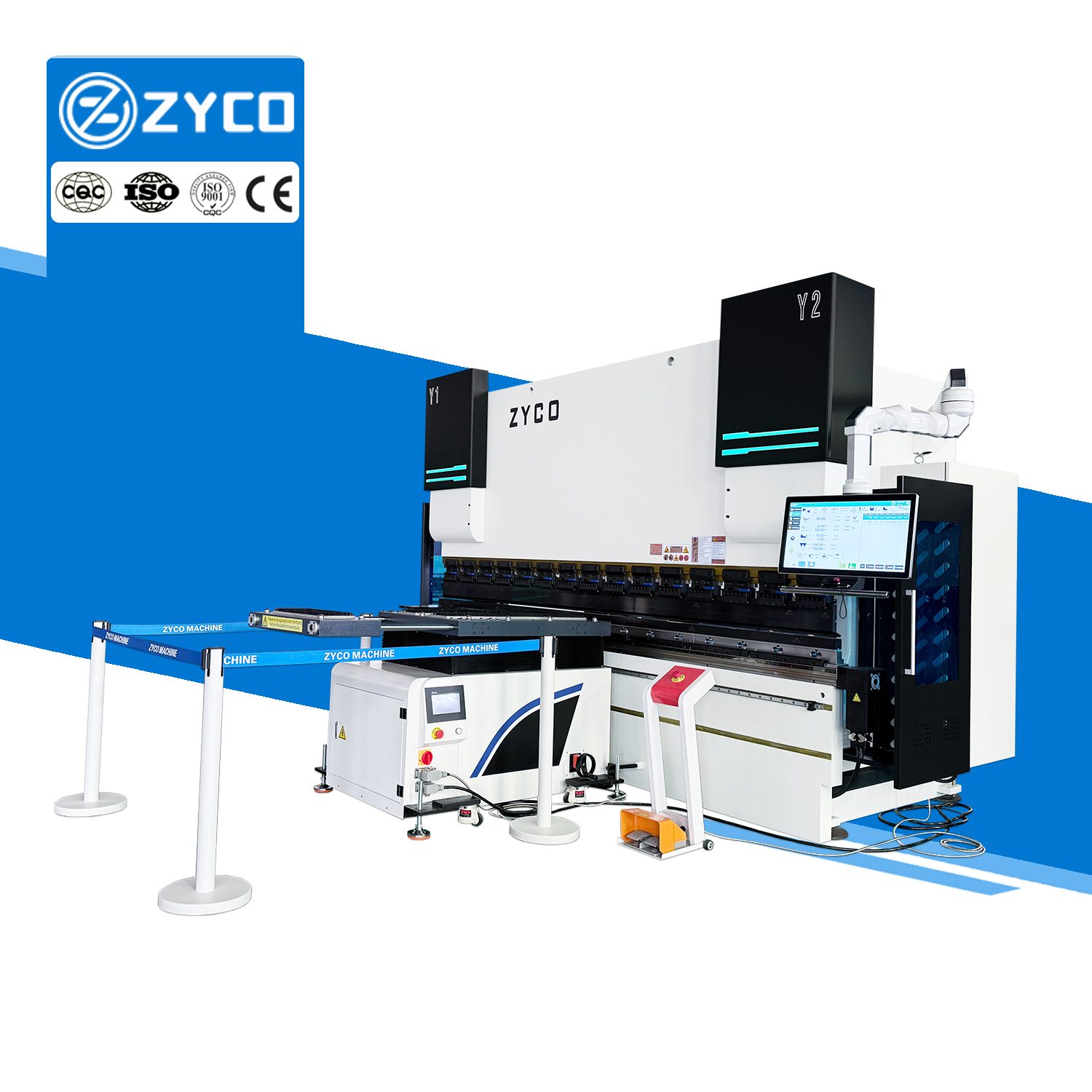

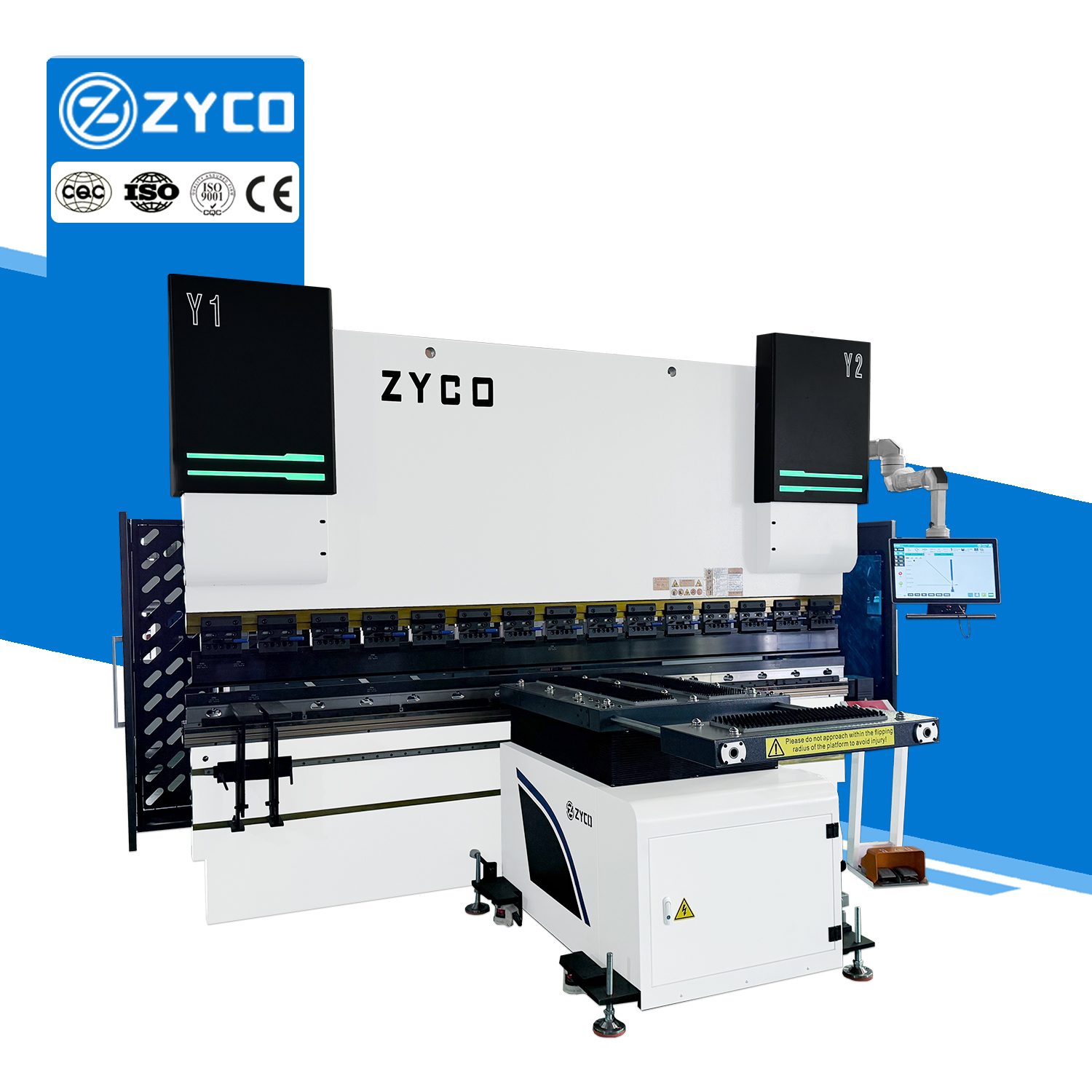

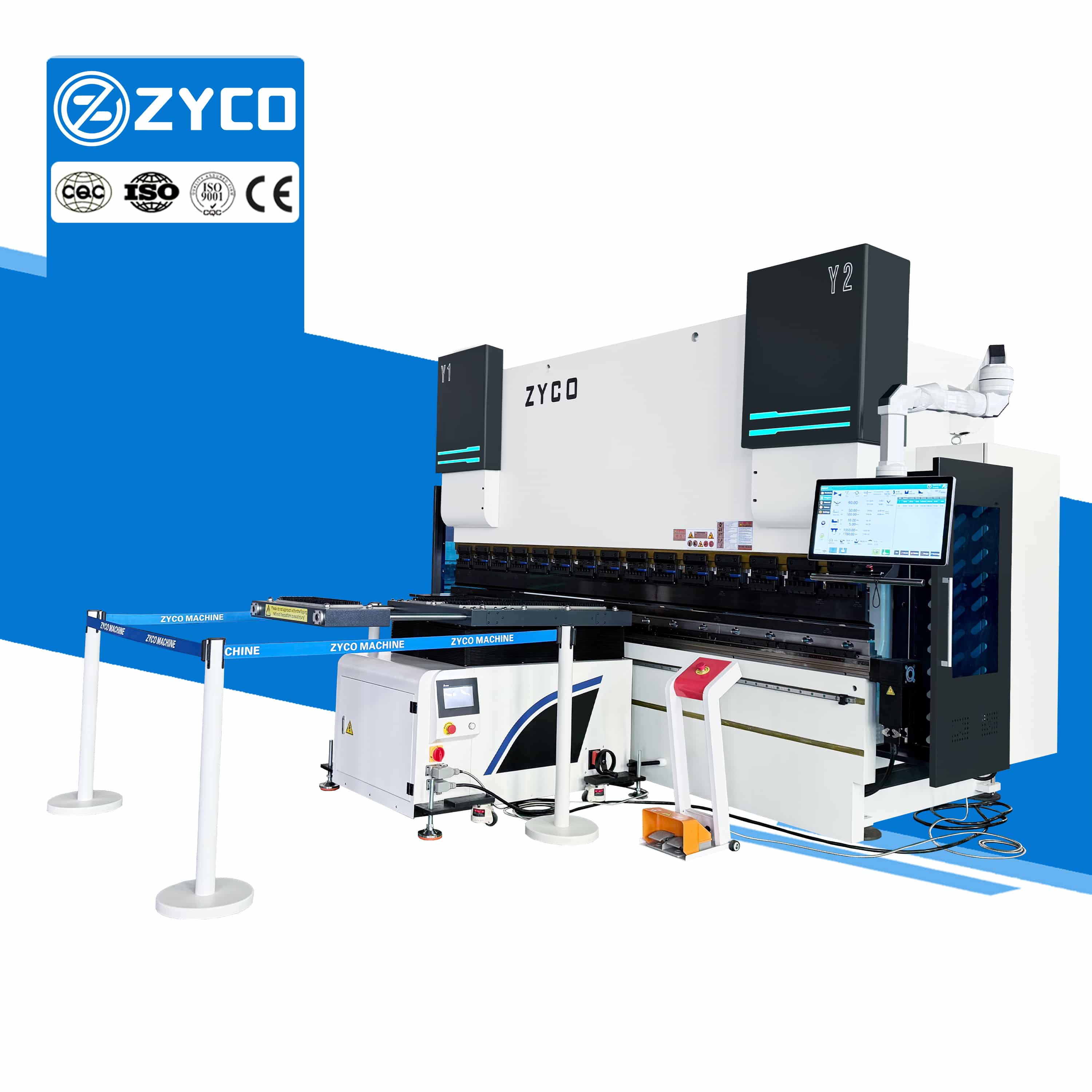

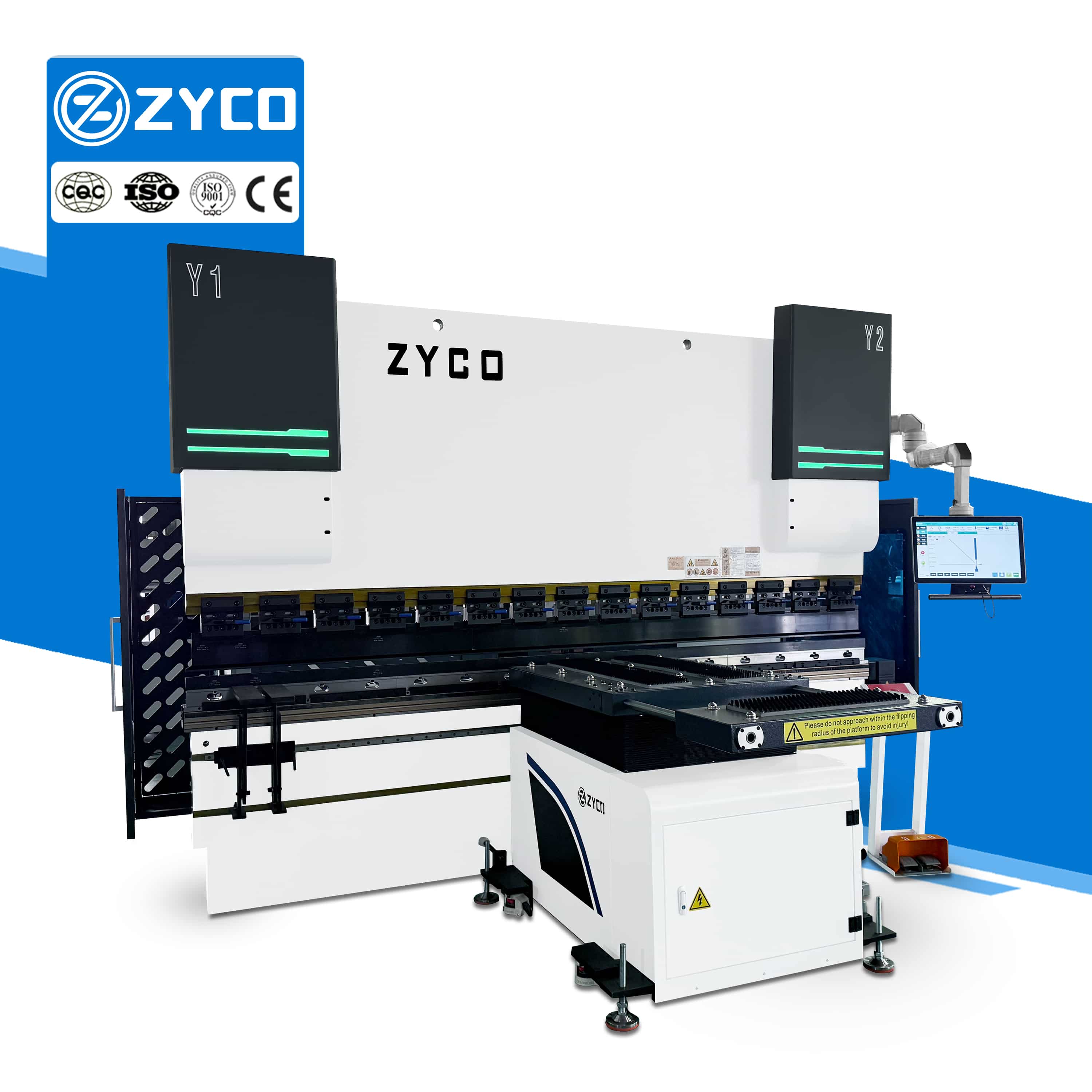

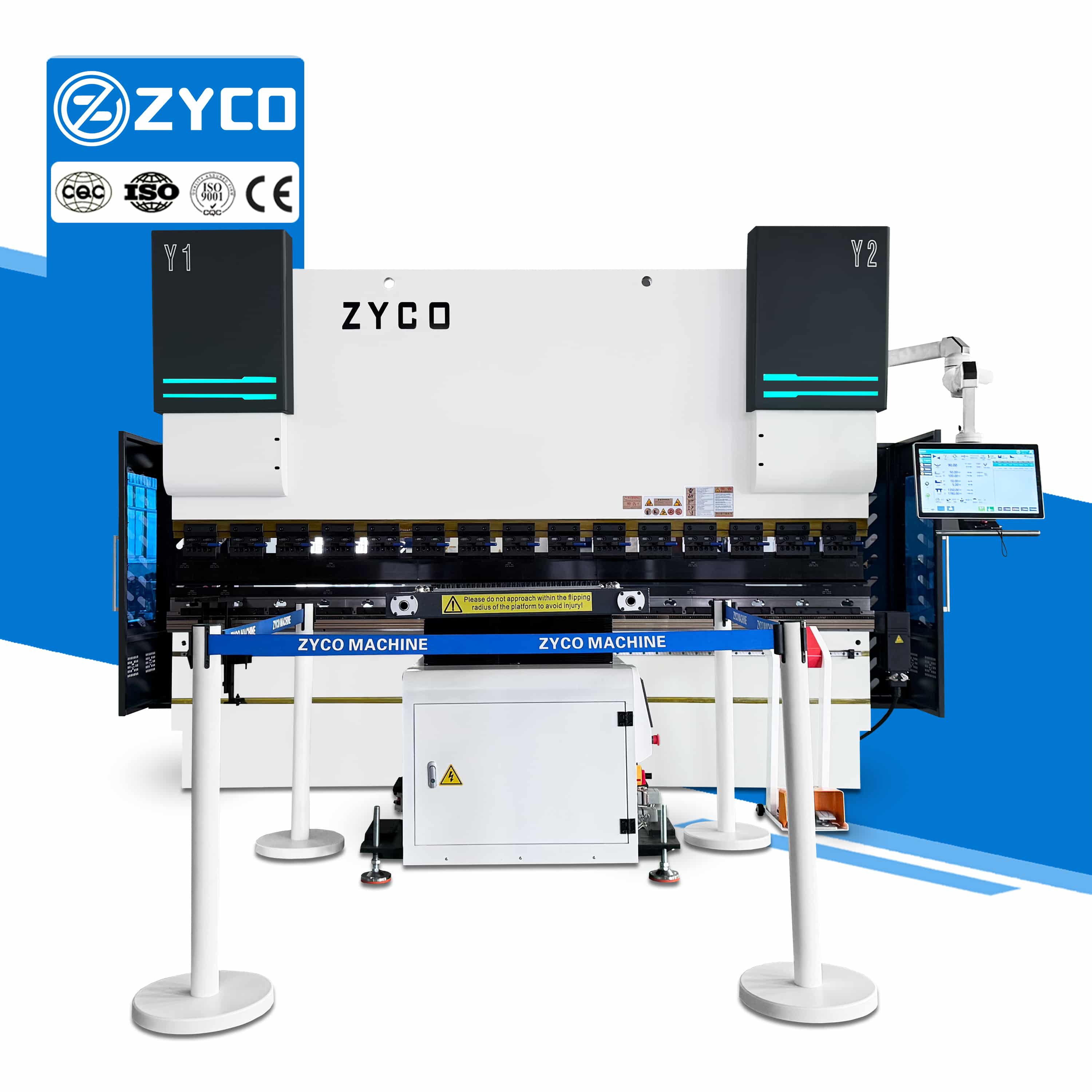

1. The new generation E-Touch electro-hydraulic control system features a clear and intuitive touch-screen control panel. Large function buttons combined with graphical icons make the programming process more convenient and efficient.
2. Standard configuration supports 8+1 axis linkage control (including Y1, Y2, X1, X2, R1, R2, Z1, Z2 axes and automatic deflection compensation).
3. The system integrates an intelligent monitoring and maintenance module, which can provide real-time feedback on equipment operating status, assisting operators in quickly identifying faults and performing maintenance operations, thus improving equipment operational stability.
Control system
- The operating interface uses an intuitive graphical icon layout, significantly reducing the programming complexity of multi-process bending and effectively shortening production support time.
- Equipped with a 21.5-inch Taiwan-made full-color high-sensitivity touchscreen, supporting multi-touch and swipe operation with a clear display.
- The intelligent programming system automatically calculates the optimal bending path and provides interference checking, supporting process simulation before processing.
View More +
Hydraulic system
- The core hydraulic valve group uses high-quality BFL brand components, ensuring excellent repeatability and stability during long-term operation.
- The hydraulic output pressure is steplessly adjustable according to the workpiece, ensuring ideal bending results for different specifications of sheet metal.
- The electro-hydraulic servo synchronous control system has a compact layout, optimized hydraulic cylinder spacing, and excellent anti-eccentric load capacity.
View More +
Servo Motor
- Uses a Siemens motor, offering stable performance and meeting the requirements of long-term continuous operation.
- The equipment operates with low noise and high energy efficiency.
- Comprehensive after-sales support is provided to ensure users receive timely and professional technical service during use.
View More +

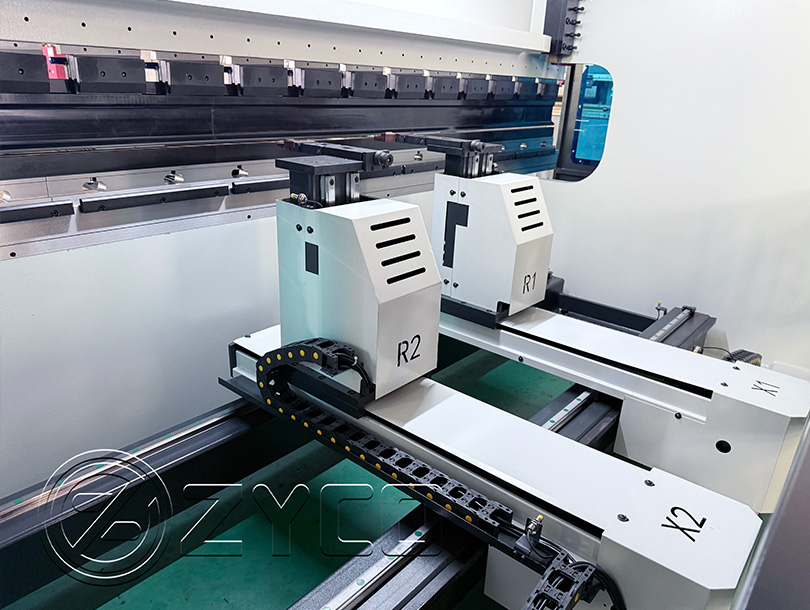

Back gauge
- The transmission system uses imported high-precision ball screws and linear guides instead of traditional transmission methods, ensuring long-term stable slider operation.
- The machine body structure undergoes high-temperature tempering and aging treatment to effectively release processing stress and prevent accuracy degradation due to deformation after long-term use.
View More +
Scale
- The position detection system uses a high-precision BFL brand grating ruler, providing sensitive feedback and accurate data.
- High measurement accuracy and rapid response.
- The core detection element has excellent anti-interference capabilities and an ultra-long service life.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
Q: Can you do OEM service?
A: Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment?
A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
Q: What about commissioning service?
A: We can offer commissioning service, the buyer need to afford plane tickets.
Q: Do you offer teaching & training?
A: Training at supplier's plant.
