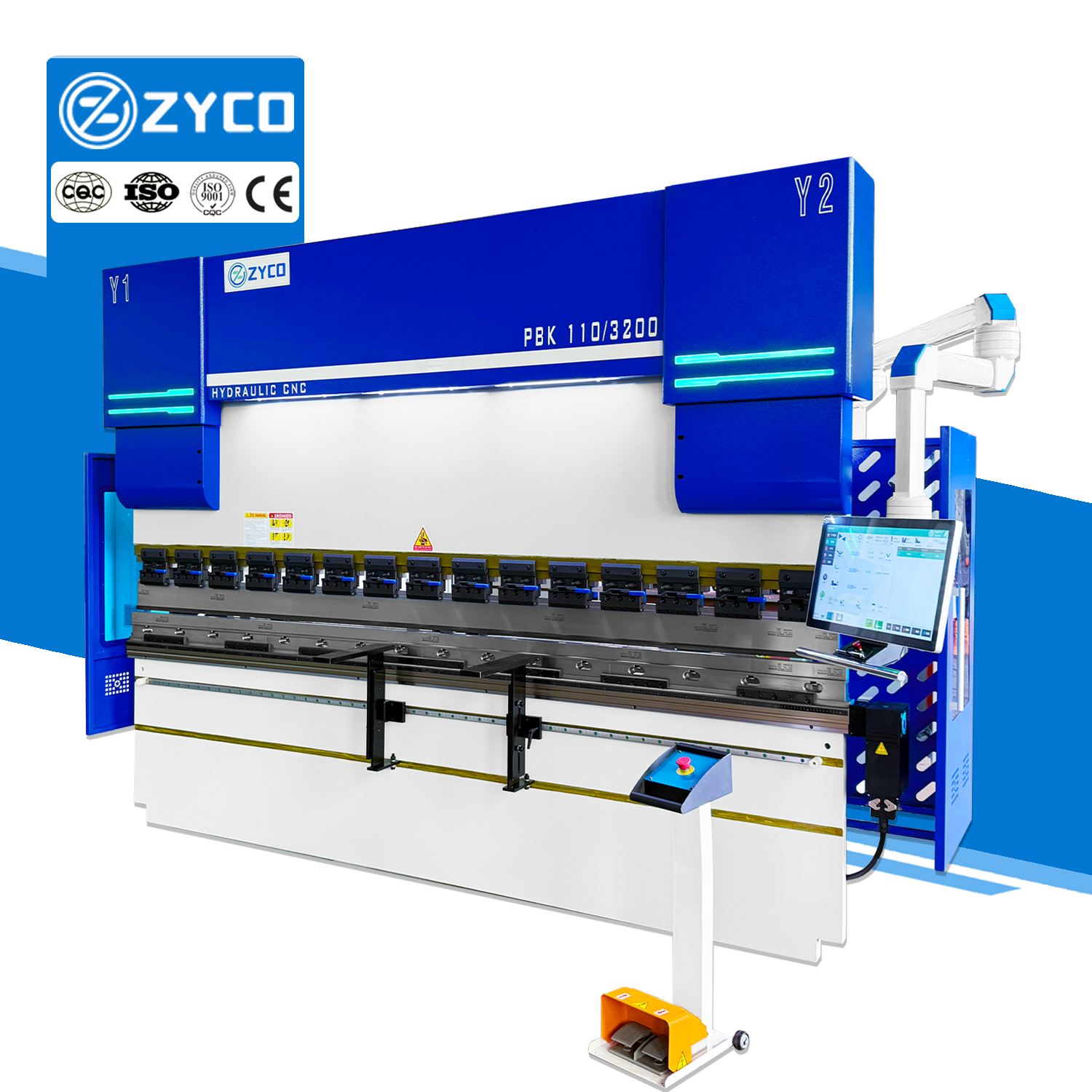

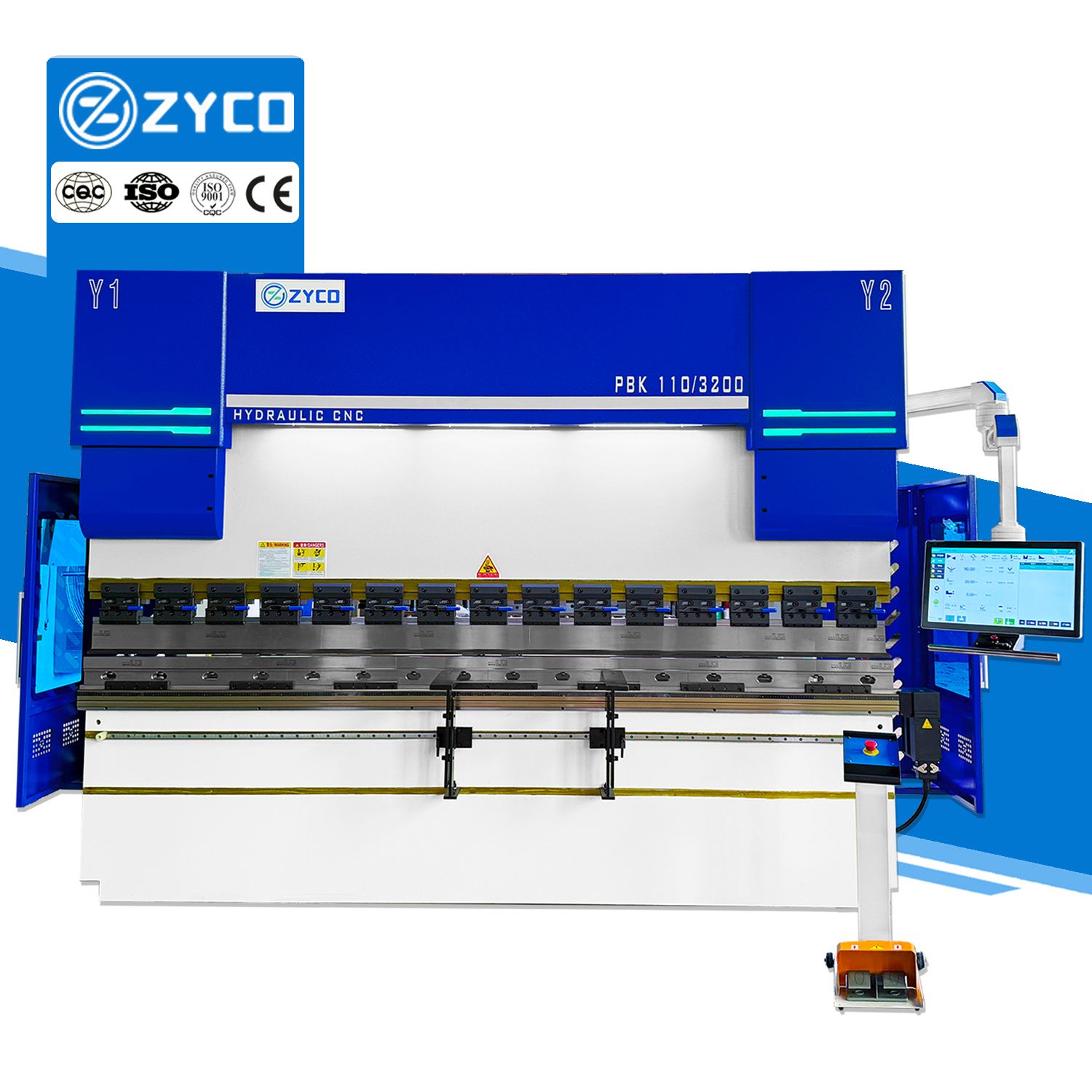

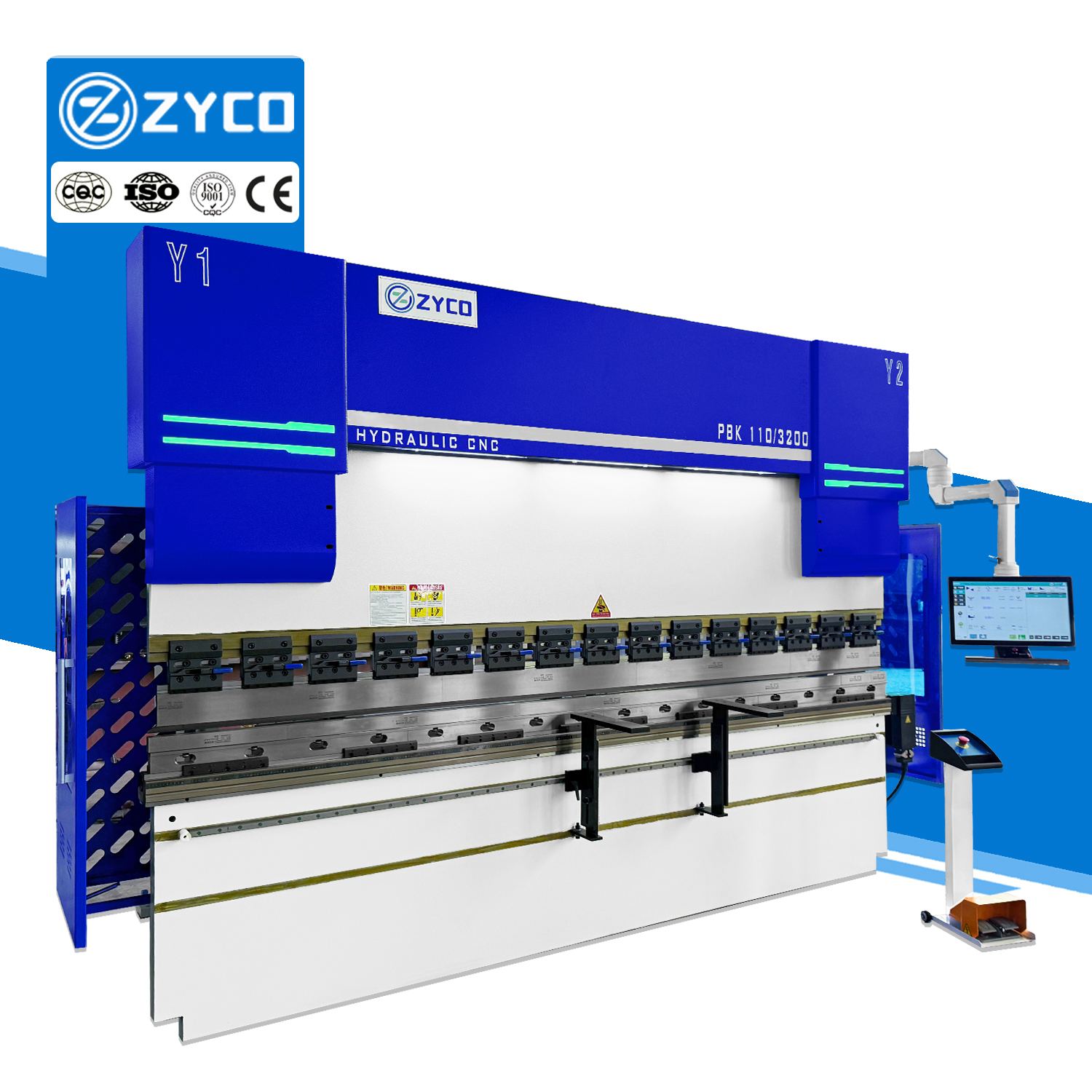

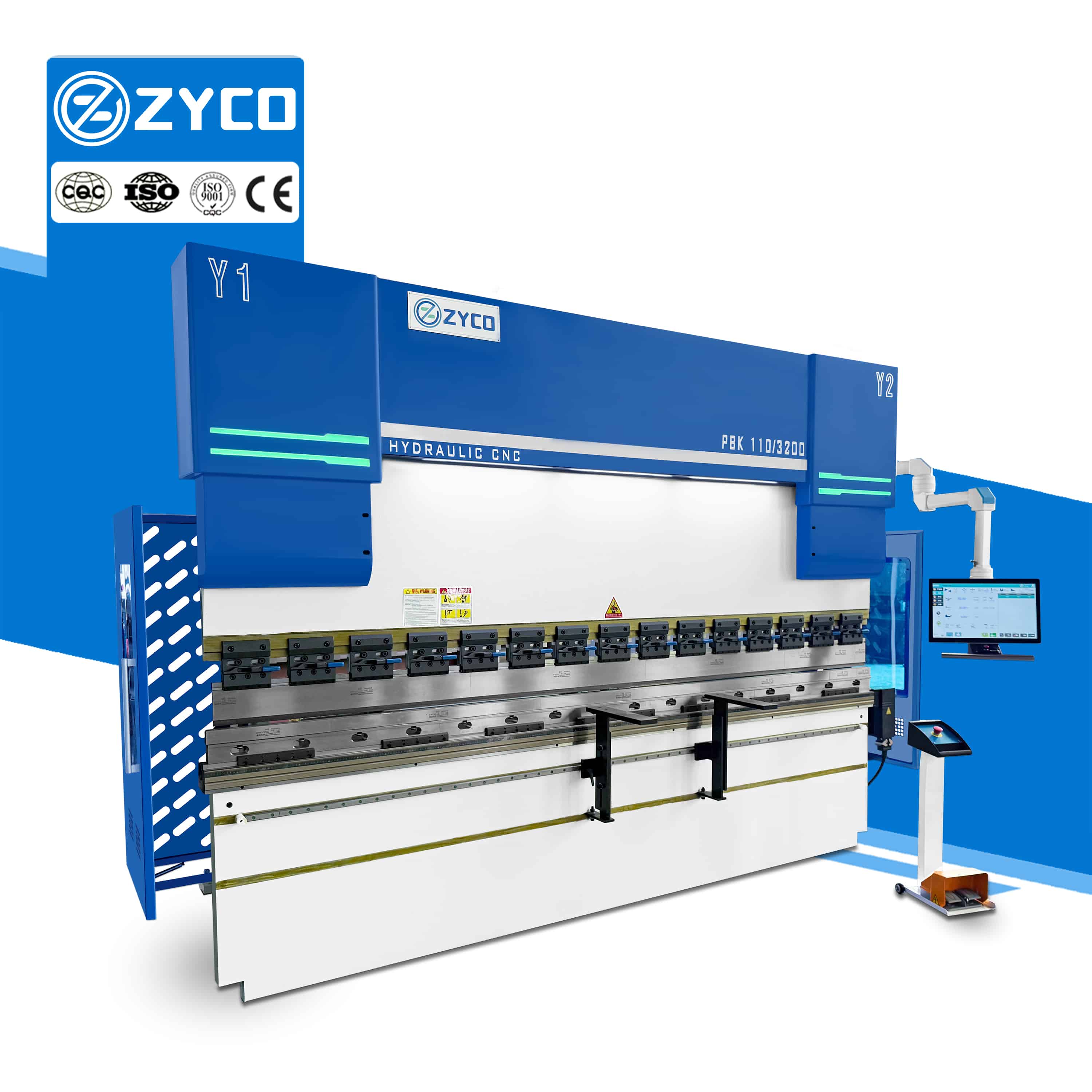

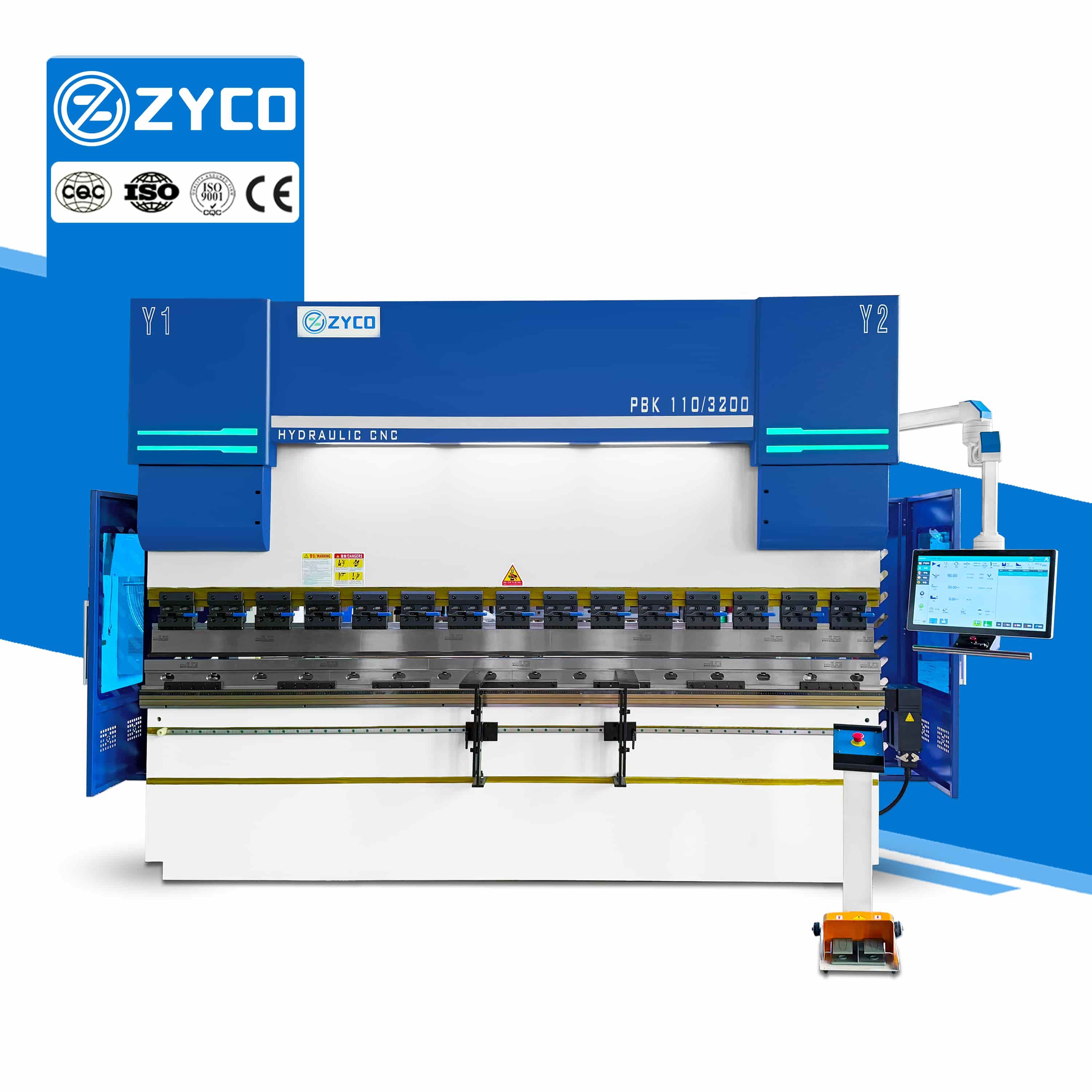

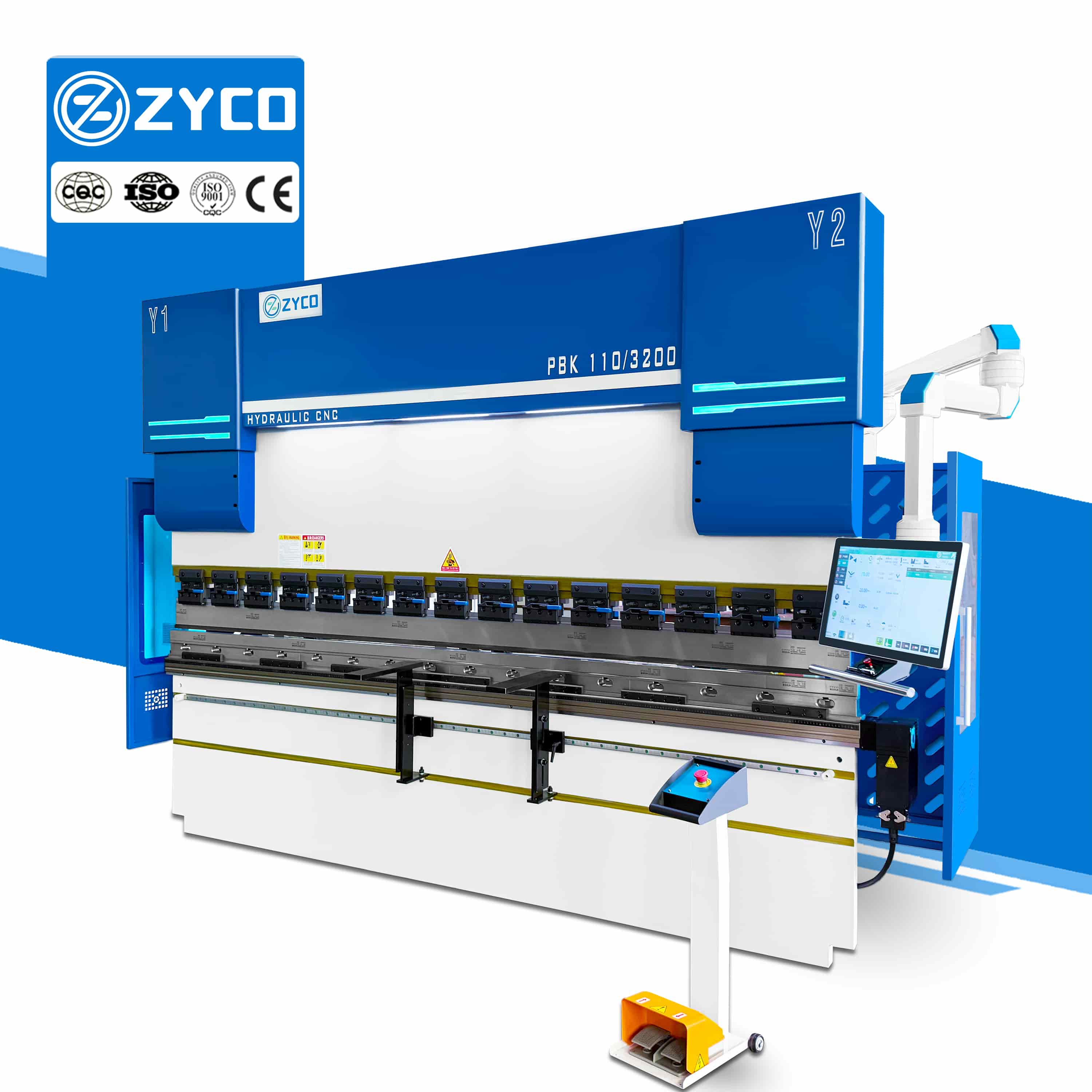

1. The next-generation E-Touch electro-hydraulic control system features an intuitive touchscreen interface with large-size buttons and icons, greatly simplifying CNC programming.
2. The basic configuration includes 4+1 axis control (Y1/Y2/X/R axes with deflection compensation), with optional expansion options such as Z1/Z2/X2/R2.
3. Built-in intelligent diagnostic and maintenance modules allow users to monitor system status in real time, quickly troubleshoot faults, and perform maintenance.
Control system

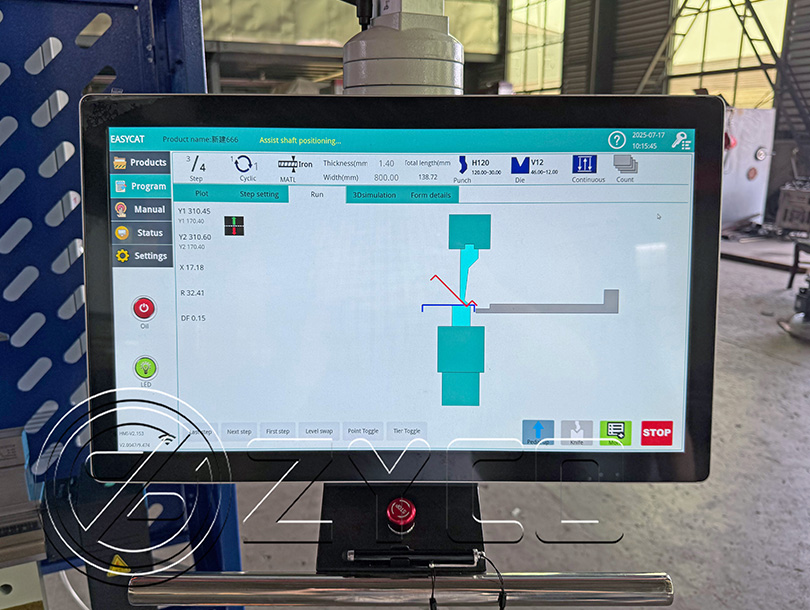

- The user-friendly interface utilizes an icon-based design, simplifying programming for multi-step batch bending and significantly improving processing efficiency.
- Equipped with a 21.5-inch, full-color, high-precision touchscreen imported from Taiwan, it supports multi-touch and a variety of gestures for clear and detailed display.
- Intelligent graphical programming automatically generates bending process plans and performs interference verification, supporting pre-production process simulations.
View More +
Hydraulic system

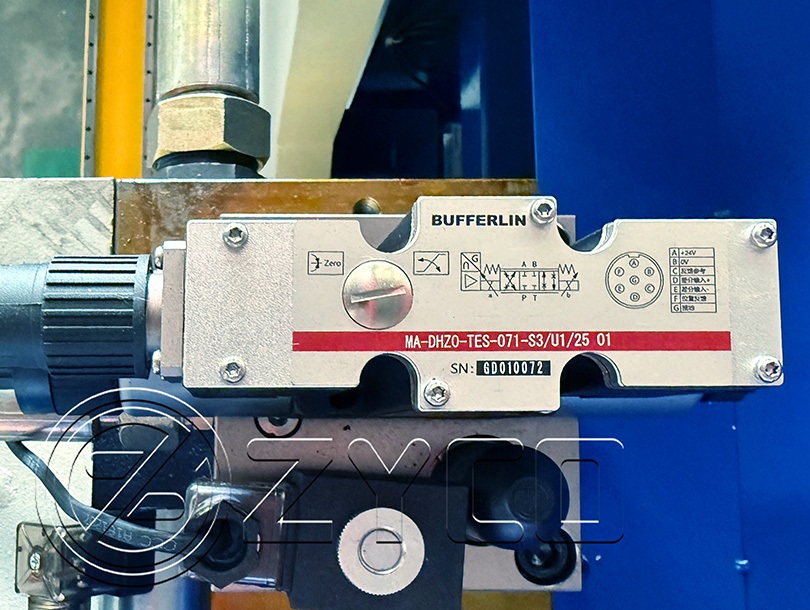

- The core valve assembly utilizes BFL brand products, ensuring long-term, stable, and high-precision performance.
- Hydraulic pressure can be precisely adjusted to perfectly match the bending force requirements of different materials.
- The electro-hydraulic servo synchronous control system features a compact design, optimized hydraulic cylinder spacing, and excellent load tolerance.
View More +

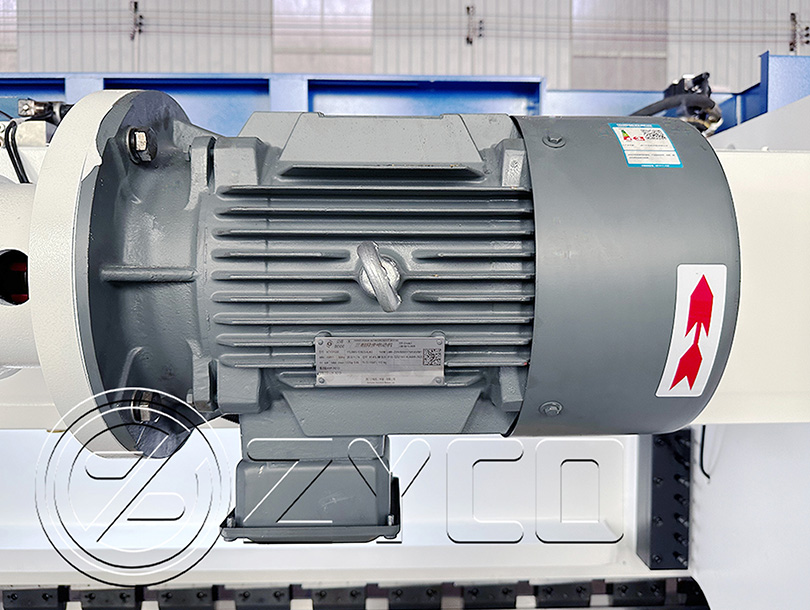

Main Motor
- Original Siemens motor for reliable quality and durability.
- Low operating noise and excellent energy efficiency.
- Comprehensive after-sales service system.
View More +

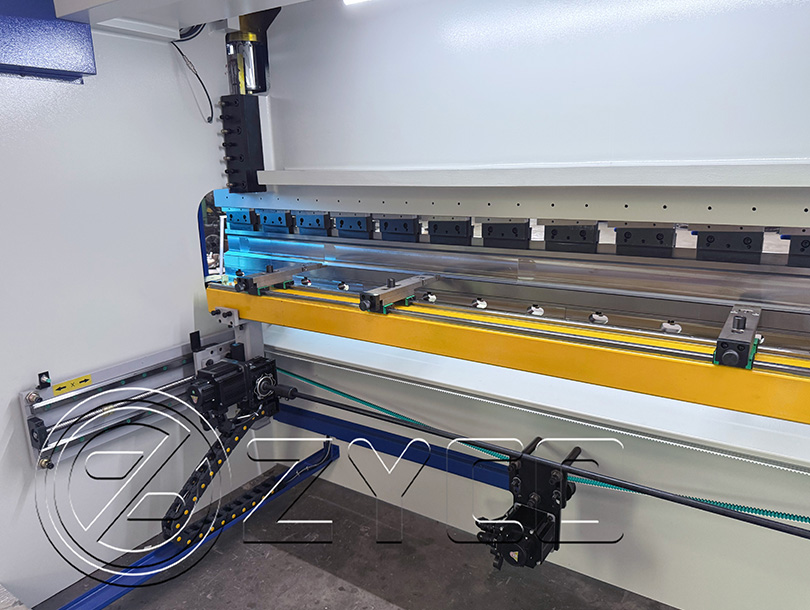

Back gauge
- Imported high-precision ball screws and linear guides replace traditional transmission mechanisms, ensuring long-term, stable positioning accuracy.
- The entire system undergoes a high-temperature tempering process to effectively eliminate internal stress, enhance material properties, and prevent accuracy deviations caused by structural deformation.
View More +
Scale

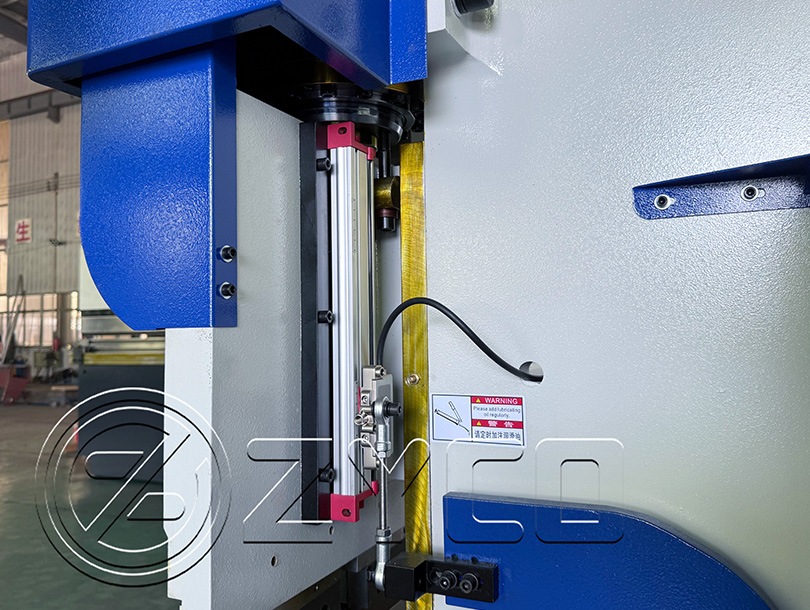

- The core measuring element utilizes a BFL brand scale.
- Ultra-high measurement accuracy and fast response.
- Durable and long service life.
View More +
Internal Structure Display
For more detailed specifications, please don't hesitate to contact us.
Hydraulic bending machine structure diagram
1.Oil tank 2.Main motor 3.Limit swich 4.Electerical box 5.Stopping finger
6.Back gauge 7.Wall panel 8.Hydraulic oil cylinder 9.Slider 10.CNC system
11.Quick Clamping 12.Upper mold 13.Lower mold 14.Workbench support plate
Processing Workpiece Drawing
Sample display
|
This page doesn't support show parameter one by one. If other model, pls consult us.
|
|
Parameter
|
Unit
|
Value
|
|
Common Model
|
|
63Tx2500
|
100TX3200
|
160Tx3200
|
200Tx4000
|
|
Pressure
|
KN
|
630
|
1000
|
1600
|
2000
|
|
Bending Length
|
mm
|
2500
|
3200
|
3200
|
3200
|
|
Column Distance
|
mm
|
2030
|
2600
|
2600
|
2600
|
|
Max Opening Height
|
mm
|
E=440
|
E=480
|
E=500
|
E=520
|
|
Throat Depth
|
mm
|
D=250
|
D=320
|
D=320
|
D=320
|
|
Slide Stroke(Y-axis)
|
mm
|
170
|
200
|
200
|
220
|
|
Slide Moving Speed
|
No Loading
|
mm/s
|
200
|
|
Pressing
|
12
|
|
Returning
|
170
|
|
Main Motor Power
|
KW
|
5.5
|
7.5
|
11
|
15
|
|
Machine accuracy
|
Y slider repeat
|
mm
|
≤±0.02
|
|
Y slider positioning
|
mm
|
≤±0.02
|
|
X, R back gauge repeat positioning
|
mm
|
≤±0.05
|
|
Size (L*W*H)
|
m
|
3 × 1.8 × 2.5
|
3.8 × 1.85 x 2.6
|
3.8 × 1.85 × 2.65
|
3.8 × 1.9 × 2.65
|
|
Weigth
|
KG
|
5500
|
7500
|
9500
|
12000
|
Partners
Customer photos
Certificate of Honor
Q: How to get a accurate quotation from us?
A: Please provide us the details of material, max thickness and max width.
Q: Can you do OEM service?
A: Yes, we can. your design is accepted , your own logo can be used on the machine.
Q: What's the shipping cost from china to your country?
A: We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q: Do you accept LC payment?
A: Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable.
Q: How to operate this machine?
A: Video line of our factory or we send you the video directly.
Q: What about commissioning service?
A: We can offer commissioning service, the buyer need to afford plane tickets.
Q: Do you offer teaching & training?
A: Training at supplier's plant.
