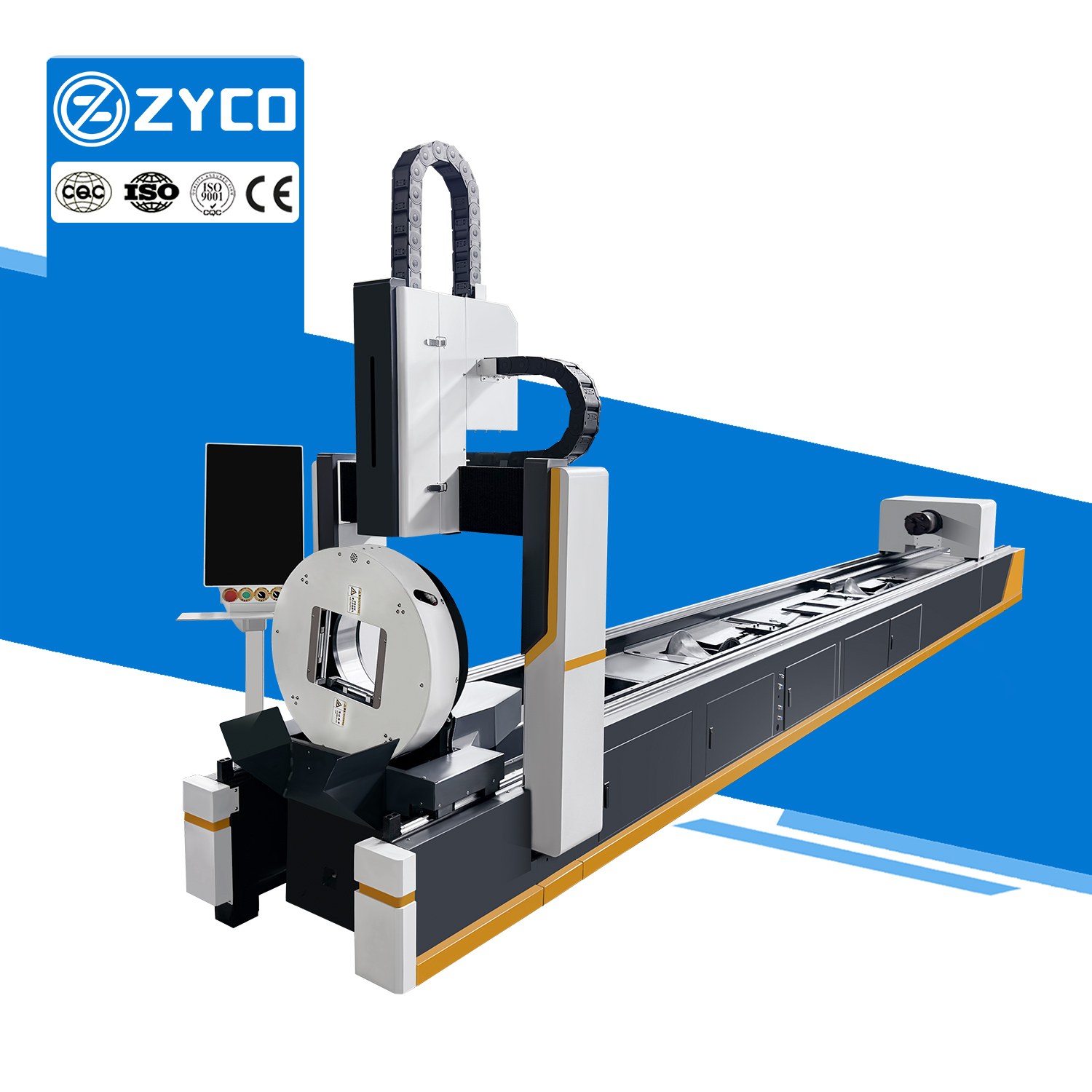

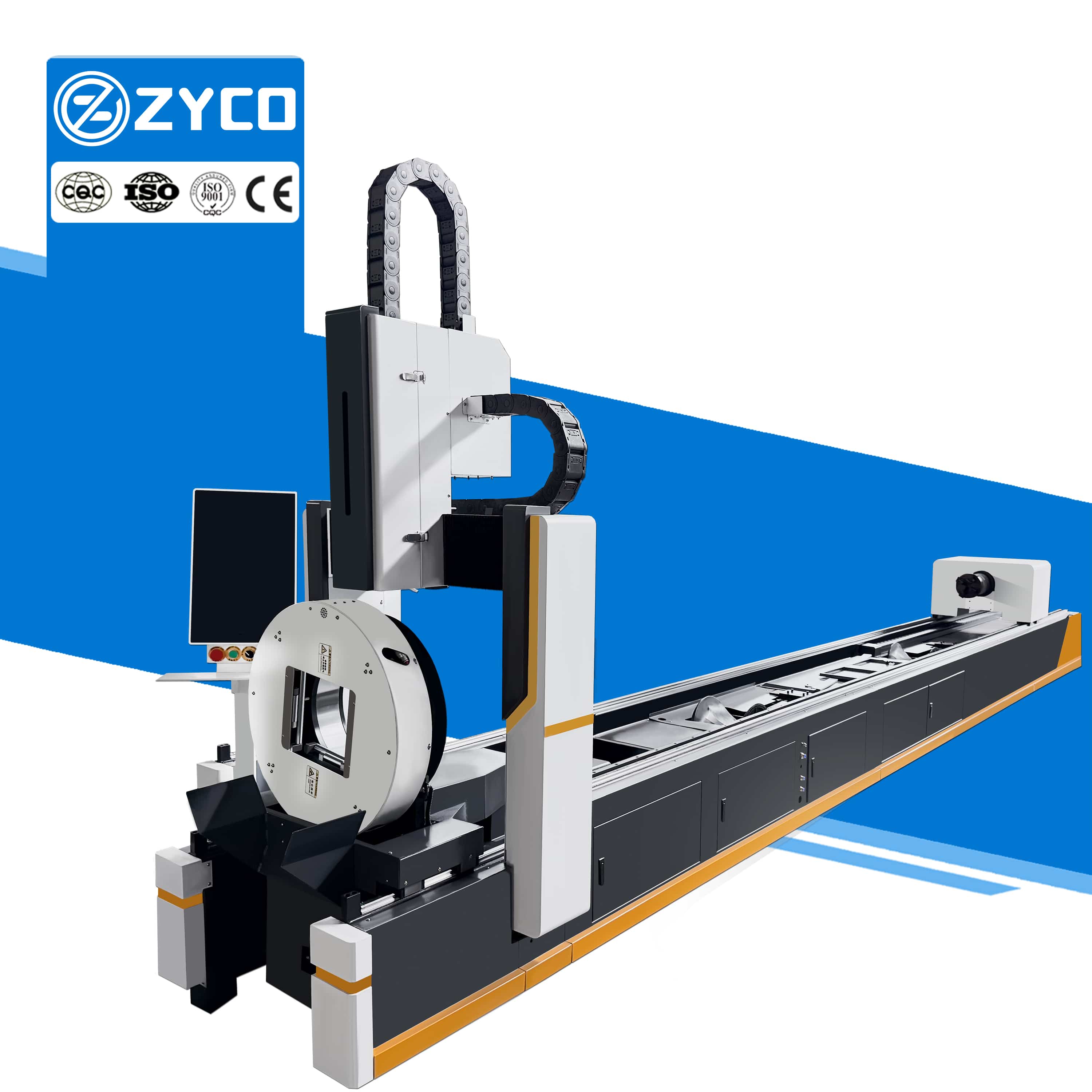

ZYCO Automatic CNC Fiber Laser Tube Cutting Machine for Stainless Steel & Steel

ZYCO

1. Modern pipe cutting machines feature integrated functions such as automatic clamping, feeding, cutting, and counting. They enable fully automated operation—from raw material loading to finished part unloading—significantly reducing the need for manual intervention.

2.Utilizing servo motor feeding and CNC control systems, the machine achieves cutting length precision within ±0.05 mm, producing smooth, burr-free cuts.

Machine Bed

Movement is driven by an AC servo motor controlled by the CNC system; the motor drives a rack-and-pinion mechanism to facilitate rapid reciprocating motion along the Y-axis.

High-precision components are used for both the Y-axis rack and linear guide rails, effectively ensuring transmission accuracy.

Limit switches control both ends of the travel range, and hard limit devices are installed to ensure operational safety.

View More +

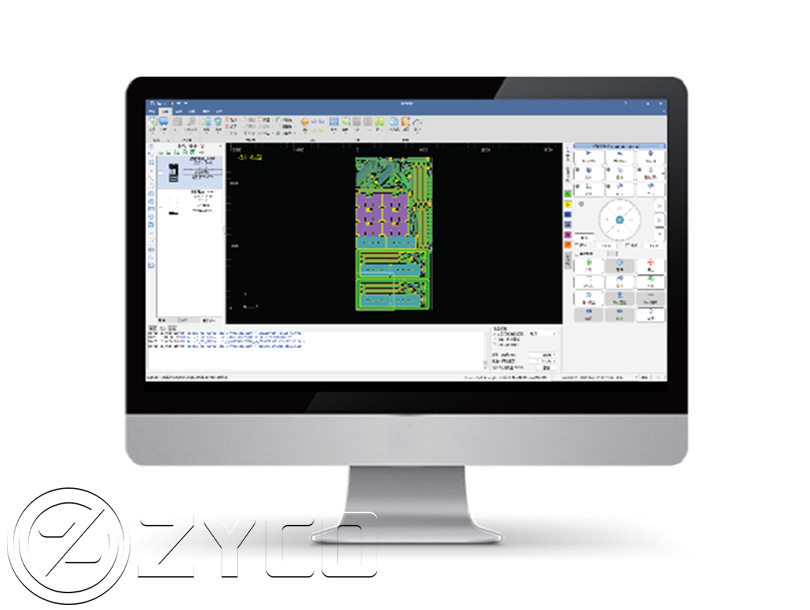

Electrical Control System

This laser cutting machine is equipped with a high-performance, Windows-based PC CNC system, characterized by rapid interpolation calculation speeds and user-friendly operation.

The servo system employs high-performance AC servo motors and drives, offering stability, reliability, excellent dynamic performance, strong load-bearing capacity, and ease of use.

The control software offers context-specific functions based on the operating mode, thereby reducing the number of physical buttons and simplifying the control panel layout.

View More +

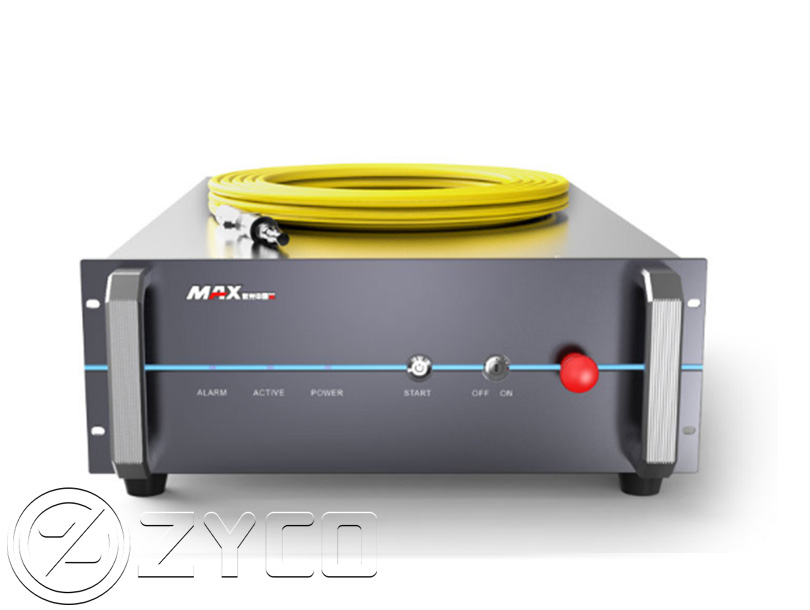

Laser Source

We utilize Raycus (Chuangxin) laser sources, which represent industry-leading technology and are renowned for stable operation and reliable quality.

The laser source delivers excellent beam quality, resulting in finer cut edges and significantly enhanced processing efficiency and product quality.

Additionally, the equipment features a fully enclosed, constant-temperature operating environment that effectively isolates external interference, ensuring the laser source consistently operates at peak performance.

View More +

Water chiller

The accompanying Hanli water chiller features a core pump assembly made of high-quality stainless steel, offering high flow rates, high lift, low noise, and a long service life.

Its control system utilizes an intelligent CPU-based, fully automatic computer panel, providing a user-friendly interface for intuitive and convenient operation.

The system's built-in intelligent fault self-diagnosis function accurately pinpoints and displays the location of faults, guiding operators to quickly eliminate potential issues and maximizing the protection of components and the entire unit.

View More +

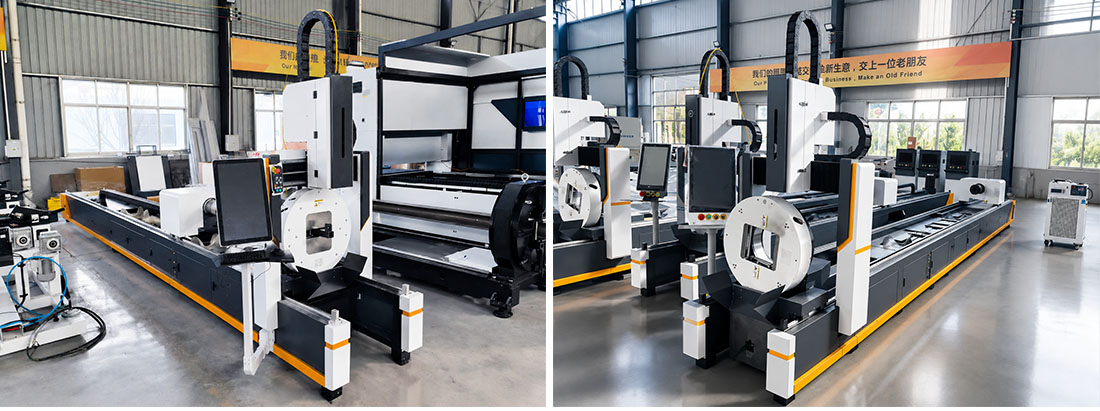

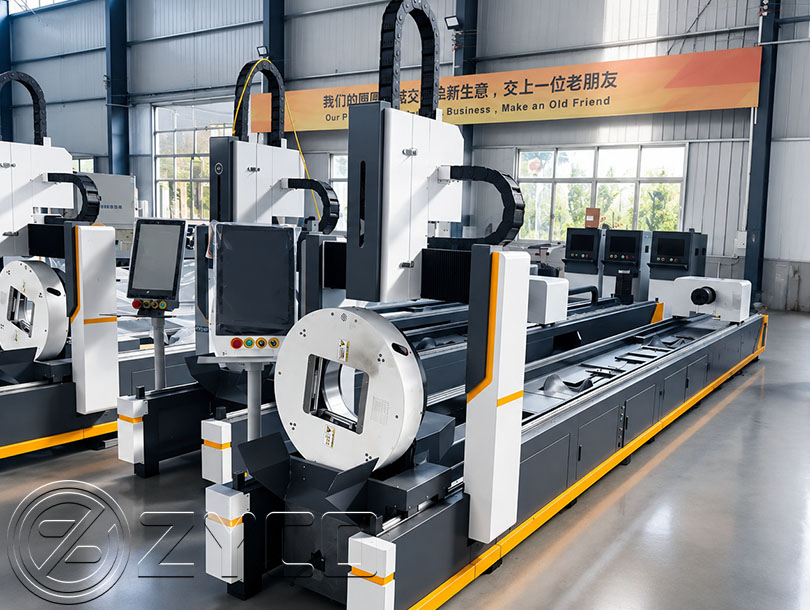

Machine Display

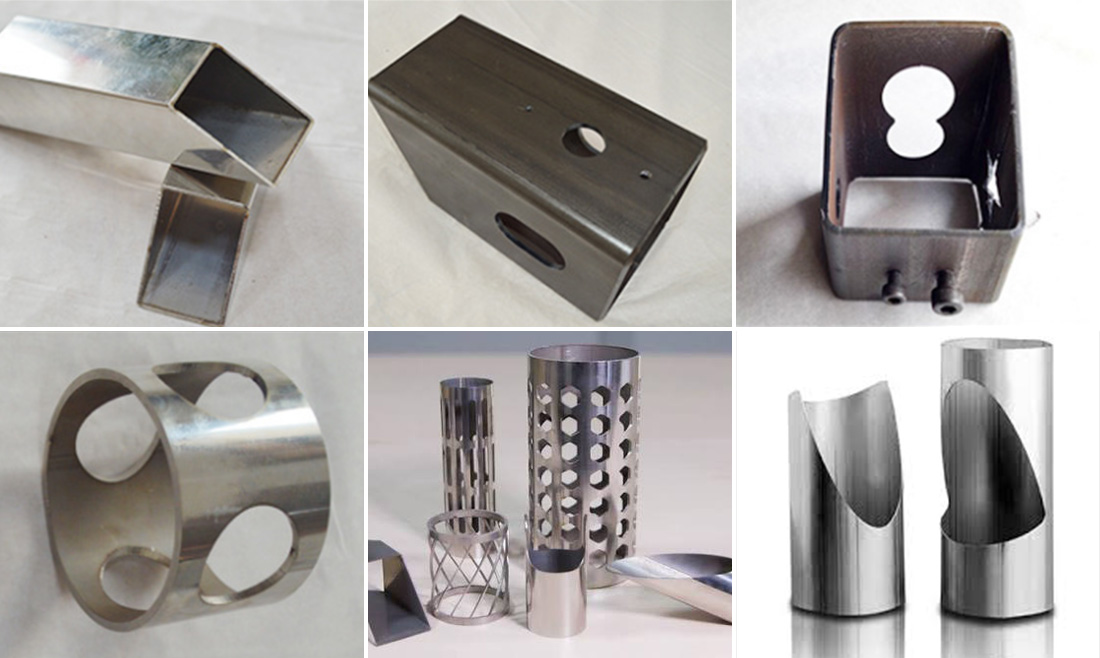

Cutting Result
